In-Car Systems
¶ FT-RD Compact In-Car Kit

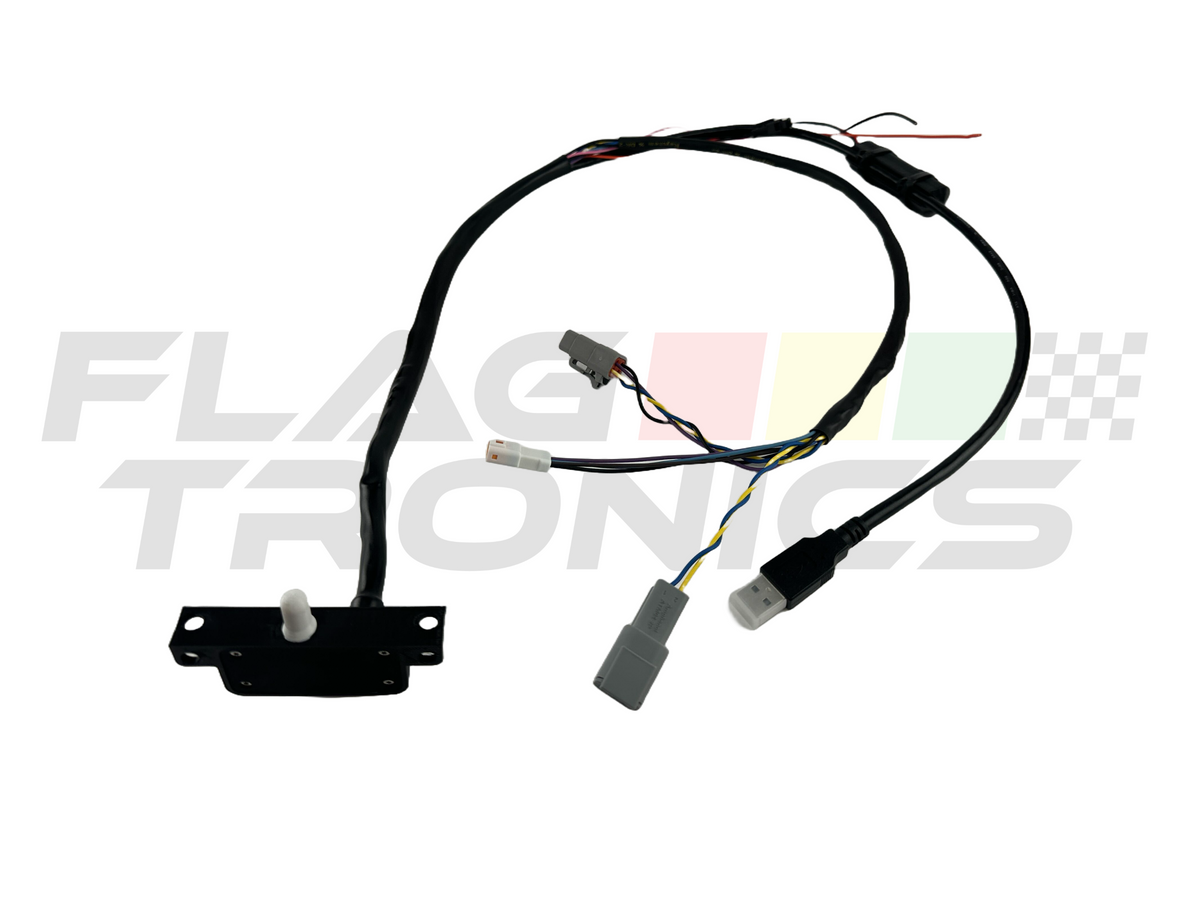

Compact in-car flagging solution ideal for open-wheel cars and vehicles with tight cockpits. Includes remote display with 3' cable, receiver unit with 3' harness (USB plug, 12V flying leads, GPS antenna connector, remote display connector, and CAN bus connector option), and GPS antenna with 6' cable. Perfect for flush mounting to dashboard or gauge cluster.
¶ 📦 Specifications
Display SizeLess than 3" W x 1" H x 0.3" D
Display TypeHigh-brightness LED matrix
Power5V DC (USB) or
12V DC (vehicle power)
Cable Length3' Remote Display Cable
3' Receiver Harness
MountingFlush mount via velcro
¶ 📦 Components Included
1x
FT-RD Remote Display
Compact LED display unit with side-exiting 3' cable for flush mounting
1x

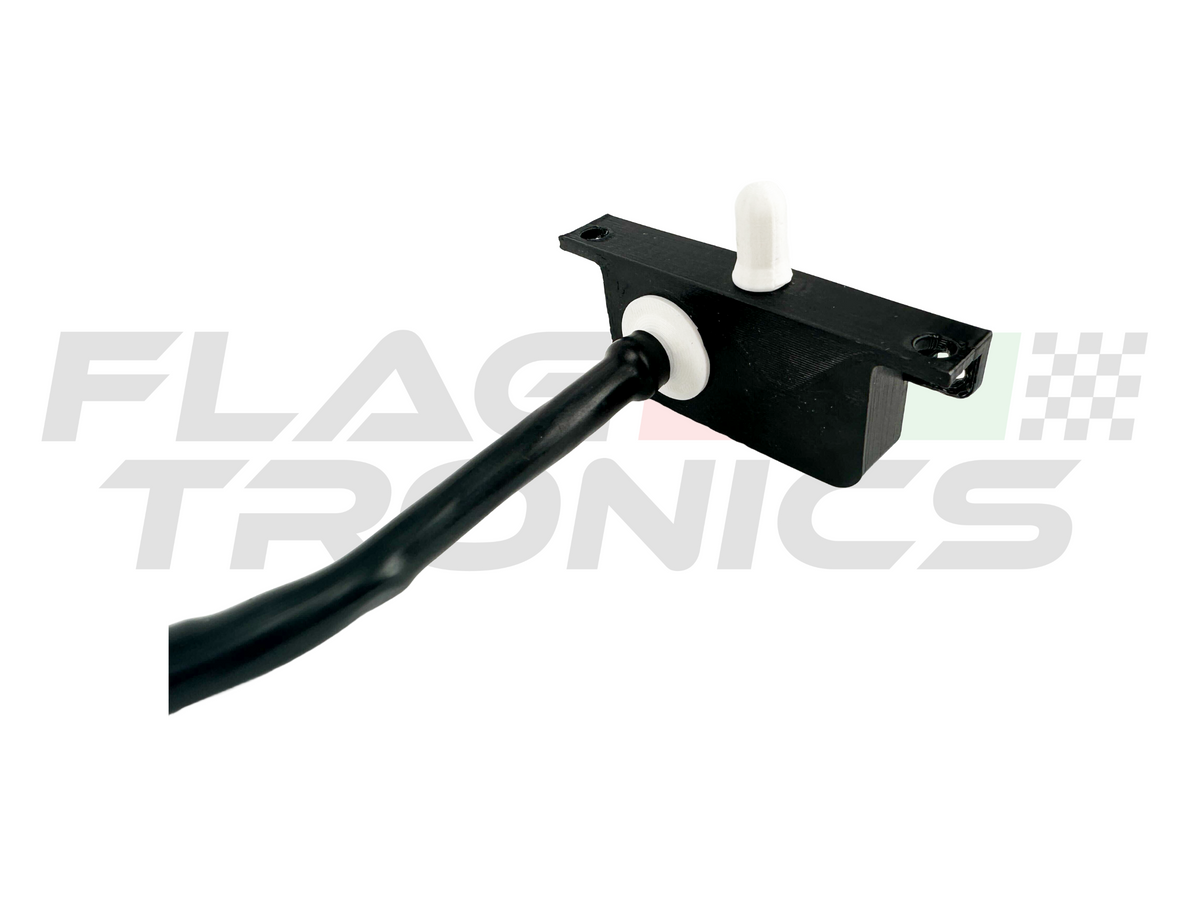

FT-RD Receiver Unit
Wireless receiver with dual mounting options and 3' harness
1x
¶ ⚡ Compatible Accessories
GPS Antenna Extension Cable
Extended GPS antenna cable for optimal satellite reception positioning
🛒 View Product ↗
FT-200 Auxiliary Battery
Backup battery pack for extended operation without vehicle power
🛒 View Product ↗
¶ ⬇ Downloads & Resources
User Manual (PDF) ↗Complete product documentation
Flagtronics Device Manager ↗Install the latest firmware for features and improvements. Simplified process with no series selection required. Keep devices updated quickly across all events.
Latest Firmware ↗Download the current firmware file for manual installation
¶ 📖 Interactive Guides
Step-by-step Scribe walkthroughs for the FT-RD.
¶ 🎬 Videos
¶ ⚠ Troubleshooting & FAQs
⚠ Display not powering on
Check USB or 12V power connection. Ensure vehicle ignition is on if using 12V. Verify USB port is working by testing with another device.
⚠ No wireless signal received
Verify receiver unit is powered and properly mounted in an unobstructed area. Ensure you are on the correct channel. Check that transmitter is within range (1000 ft max).
⚠ Display is dim or hard to read
Adjust brightness settings using the configuration menu. Clean display surface. Reposition unit if in direct sunlight. Check power voltage meets minimum requirements.
⚠ Display showing upside down
Use Flagtronics Device Manager software to invert the display orientation. This is a normal configuration option for different mounting positions.
⚠ Unable to connect for firmware update
Install Flagtronics Device Manager software first. Use the provided USB cable. Ensure display is powered on. Try a different USB port on your computer. Check for driver updates in Device Manager (Windows).
⚠ Wrong flags displaying
Verify channel selection matches your track's configuration. Reset unit to factory defaults and reconfigure. Update to latest firmware. Check for interference from other wireless devices.
⚠ Loose cable connections
Check that all connectors are fully seated. Verify the 3' cables are not being pulled or stressed. Use cable management to reduce strain on connectors.
⚠ Configuration settings not saving
Allow 5 seconds after making changes before disconnecting power. Perform a firmware update to latest version. If issue persists, contact Flagtronics support for warranty service.
Still having issues? Contact Flagtronics technical support at flagtronics.com for additional assistance.
